CO2 Incubator

CO2 Shaking Incubator aniCell

NB206CXL / NB206CXXL
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지

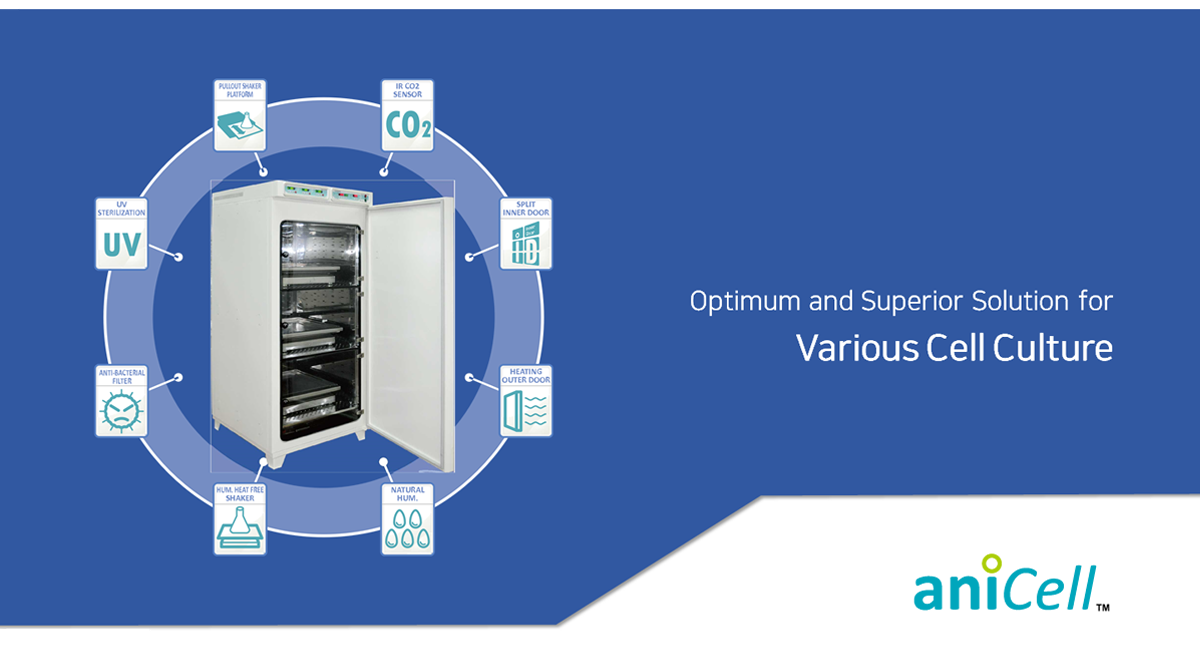

Large capacity CO2 incubator with removable long life shakers provides optimum solution for cell culture in suspension.

6 sides direct heating

Pullout shaker platform

IR CO2 sensor

3 shakers (Humidity, heat free)

NB206CXL / NB206CXXL

Shaker Speed Range: 30~250rpm

3 Shelves Inner Door

Anti-Bacterial Filter

Orbital Shakers constructed with Stainless Steel

The aniCell CO2 shaking incubator is ideal for use in the fields of bio similar production, proteomics, crystallography, genomics, cell biology and new drug development. A large capacity CO2 incubator with removable long life shakers provides the optimum solution for cell culture in suspension.
The aniCell’s internal chamber is subdivided into 3 compartments each holding a removable orbital shaker which can hold Erlenmeyer, cylindrical flasks or deepwell blocks. Dual beam infra red sensor provides precise CO2 control while the six side heating system ensures excellent temperature control and recovery and humidity. An outstanding Air Circulation System ensures temperature uniformity within all compartments.
The unique patented orbital shakers are constructed with stainless steel to minimize contamination and aid cleaning. Brushless magnetic plate induction design allows these shakers to be used in highly humid environments and operate vibration free without generating particulates. Noise free these powerful shakers can be used for many years with reliability guaranteed.




GROWING CELL SUSPENSION
The Anicell is designed to culture eukaryotic cells such as CHO, HEK, Hela etc. in suspension but can also be used as a static incubator if required.
INFRA RED SENSOR
Industry Standard Dual Beam Infra Red Sensor is used to maintain control of CO2 density.
EXCELLENT TEMPERATURE CONTROL
All six sides are directly heated and combined with P.I.D control to ensure that temperatures are reached quickly and uniformity is maintained. Further the system combines forced air and natural convection to maintain the best temperature uniformity at al times.
HIGH NATURAL HUMIDIFICATION
A deep and wide humidity tray allows a high and natural humidity to be generated.
SPLIT INNER GLASS DOORS
The internal chamber is separated into three compartments each with its own shelve, shaker and glass door. This design prevents excessive loss of heat and CO2 when removing flasks.
HUMIDITY DISPLAY
An LED display of actual humidity in the chambers informs the user of the appropriate time to supplement the water in the humidity tray.
AUTO RESTART FUNCTION
Each shaker has an auto start function such that if the glass inner door to each compartment is opened the shaker in that compartment stops and starts again when the door is closed. Auto start is also enabled if there is a power cut.
PULLOUT SHAKER PLATFORM
Platform of each shakers can be pulled out to load flasks efficiently on each shakers.
STICKY MATS& VARIOUS HOLDERS
The orbital shakers can be used with sticky mats or dedicated flask holder trays or universal flask/tube holder plate.
INDIVIDUAL SHAKER CONTROL
Each orbital shaker can be individually controlled with an external control panel.
UV LAMP
A UV lamp situated next to the circulation fan works to sterilize the air in the incubator even during cell culturing. The UV lamp can be turned on or off with a switch on the front panel.
STAIN RESISTANT INTERIOR
The inner chamber and all orbital shakers are constructed with stainless steel SUS304 which is designed for use in GMP facilities and is resistant to rust formation in high humidity conditions.
ANTI-BACTERIAL FILTER
A HEPA filter, located in the post circulation fan, traps microbes and helps to maintain a sterile environment.

Specification

INCUBATOR NB-206CXL NB-206CXXL
Temp. range Ambient +5℃ to 60℃ Ambient +5℃ to 60℃
Temp. accuracy ±1℃ at 37℃ ±1℃ at 37℃
Humidity ≥70% at 37℃ ≥70% at 37℃
CO2 range 0% to 20% 0% to 20%
CO2 accuracy ±0.3% at 5% at 37℃ ±0.3% at 5% at 37℃
CO2 sensor IR CO2 sensor IR CO2 sensor
CO2 inlet pressure 0.7 ~ 1 bar 0.7 ~ 1 bar
Outer door Silicon packing magnet door Silicon packing magnet door
Inner door Each inner door of 3 Shelves Each inner door of 3 Shelves
Display LED Display LED Display
Jacket type Air jacket type (6 sides heating) Air jacket type (6 sides heating)
Filter Anti-Bacterial Hepa filter Anti-Bacterial Hepa filter
Sterilization U.V 4Wx1ea U.V 4Wx1ea
Chamber volume 650 liter 850 liter
Shelves 3ea 3ea
Chamber dimensions 700(W)x650(D)x1430(H)mm 700(W)x800(D)x1530(H) mm
Each compartment Dimension Compartment 1(Bottom): 700(W)x650(D)x430(H) mm

Compartment 2, 3 (Middle, Top): 700(W)x650(D)x380(H) mm 		700(W)x800(D)x410(H) mm
Overall dimensions 820(W)x780(D)x1740(H) mm 820(W)x920(D)x1840(H) mm
Weight 323kg 393kg
Power 110/220V, 50/60Hz 110/220V, 50/60Hz
SHAKER 　 　
Shaking motion Orbital Orbital
Speed range 30 to 200 rpm 30 to 250 rpm
Speed accuracy ±1rpm ±1rpm
Speed increment 1rpm 1rpm
Time range Continuous or up to 47h 59mins Continuous or up to 47h 59mins
Time accuracy ±1% ±1%
Time increment 1 minute 1 minute
Motor Plate type BL/DC Motor Plate type BL/DC Motor
Drive system Beltless direct drive Beltless direct drive
Orbit diameter 25mm 25mm
Platform size 520(W)x520(D) mm 520(W)x520(D) mm
Dimension 465(W)x540(D)x125(H) mm 465(W)x540(D)x125(H) mm

Maximum allowance for flask capacity

Flask Capacity NB-206CXL NB-206CXXL
125mL Flask Max. 158ea Max. 158ea
250mL Flask Max. 90ea Max. 90ea
500mL Flask Max. 60ea Max. 60ea
1000mL Flask Max. 48ea Max. 48ea
2000mL Flask Max. 9ea Max. 27ea

Optimum performance for maximum allowance can be obtained at 150rpm.

Accessories for NB206CXL / NB206CXXL

206CXL-H10 100ml Flask Holder x 36ea with Platform
206CXL-H25 250ml Flask Holder x 23ea with Platform
206CXL-H50 500ml Flask Holder x 16ea with Platform
206CXL-H100 1000ml Flask Holder x 9ea with Platform
206CXL-H200 2000ml Flask Holder x 5ea with Platform
206CXL-SR Spring Rack
206CXL-MM Microplate rack with platform(6ea)
206CXL-PL Hard-Anodizing Alluminum Plate with universal hole
206CXL-SLPL SLIDE OUT PLATFORM FOR SHAKER
